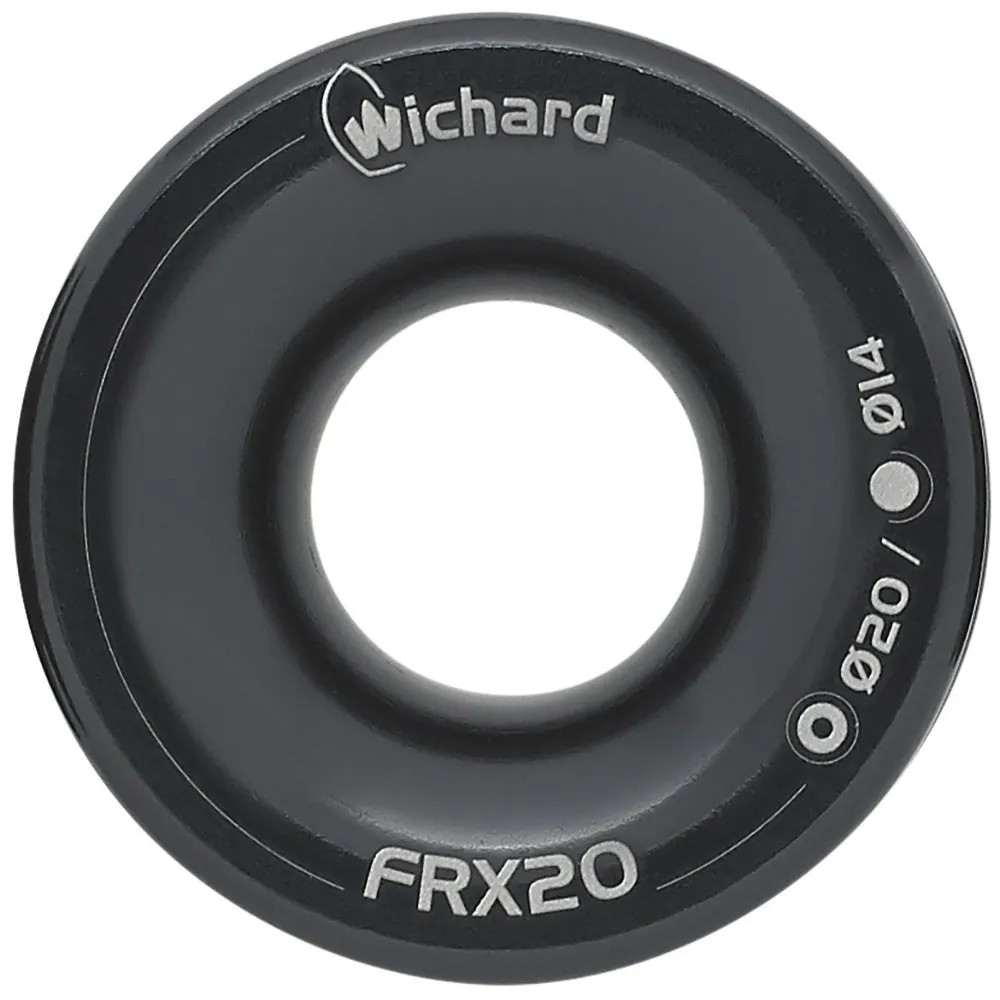

FRX20 Friction Ring - 20mm (25/32")
Features:
- Efficient and light
- FRX Wichard thimbles are efficient, light, and reliable
- Very strong and can be used for heavy loads and semi-static lines
- FRX thimbles are designed to make your lines run smoothly with minimum wear
- They are hard anodized (50 microns) for a longer lifespan
Applications:
- Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more
Specifications:
- Materials: Anodized aluminium
- Working load: (lb) 7050 / (kg) 3200
- Weight: (lb) 0.068 / (g) 31

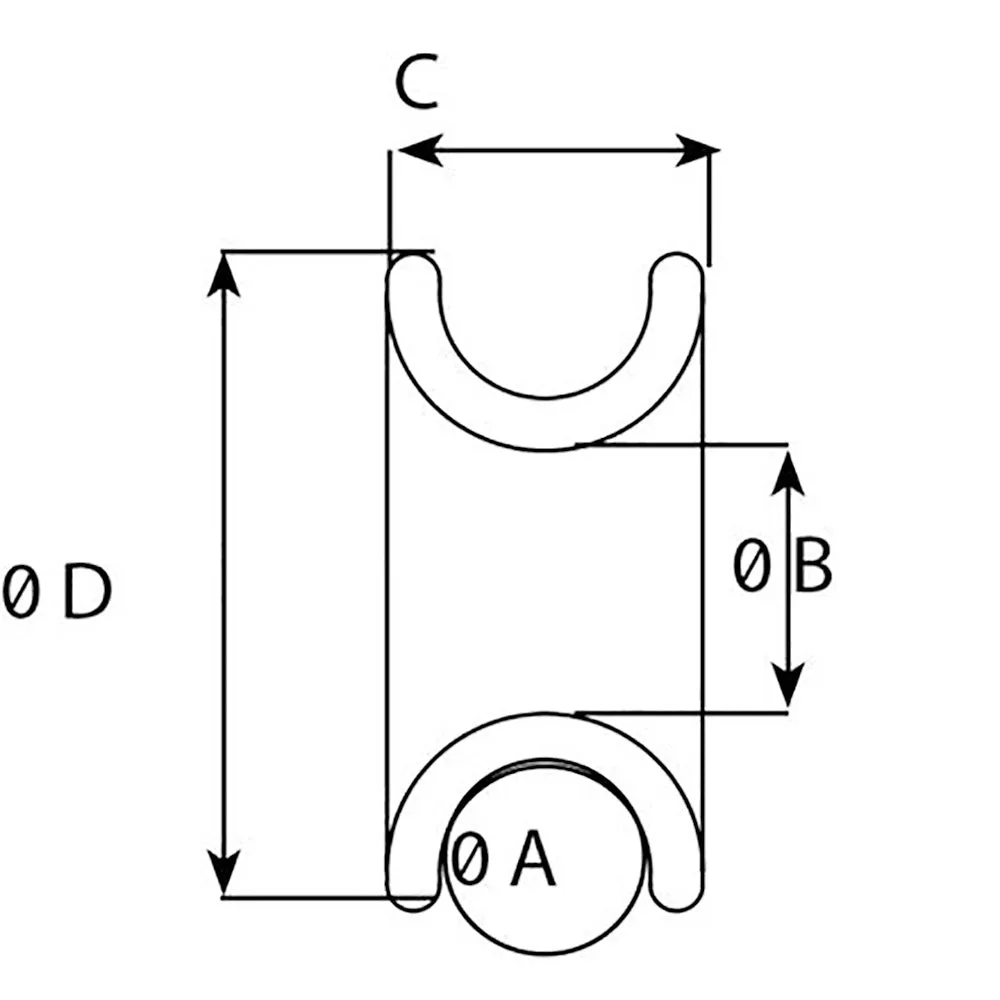

- A: (inch) 35/64" / (mm) 14
- B: (inch) 25/32" / (mm) 20
- C: (inch) 53/64" / (mm) 21
- D diameter: (inch) 1 27/32" / (mm) 47
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
